Crafting the Blueprint: Database Schema for an Appointment System

Designing the foundation of any application is paramount, and for a system managing critical schedules like doctor appointments, a robust database schema is the blueprint for success. This post delves into the initial schema design for the rdv_Medecin project, a system aimed at streamlining medical appointment bookings.

The Core Challenge: Managing Relationships

The rdv_Medecin project necessitates careful handling of several key entities: patients, doctors, and their appointments. The challenge lies in accurately representing the relationships between these entities to ensure data integrity, efficient querying, and system scalability. A poorly designed schema can lead to data inconsistencies, slow performance, and difficulty in extending the system with new features.

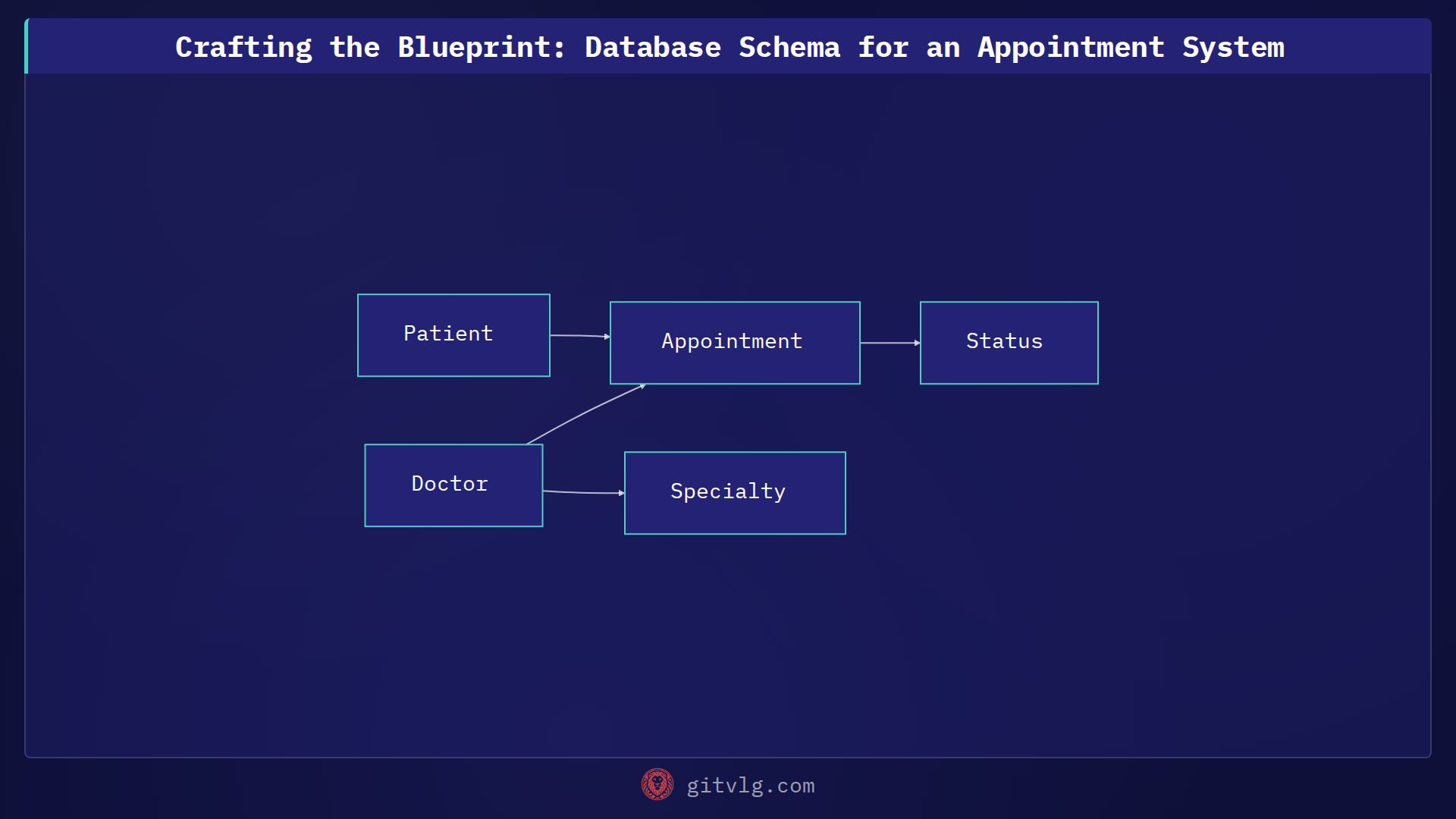

Key Entities and Their Roles

We start by identifying the main actors and objects within the system:

• Patients: Individuals who book appointments. Each patient will have unique identifying information.
• Doctors: Medical professionals who offer services. Doctors can specialize in various fields.
• Specialties: Categorizations of medical fields (e.g., Cardiology, Dermatology) that doctors might possess.
• Appointments: The core event linking a patient, a doctor, a specific time, and a status.

Structuring the Data with PostgreSQL

Using PostgreSQL, we can define tables and relationships that reflect these entities. The goal is to establish clear primary and foreign key constraints to enforce referential integrity.

Let's look at a simplified example of how these tables might be structured:

CREATE TABLE patients (
    patient_id SERIAL PRIMARY KEY,
    first_name VARCHAR(100) NOT NULL,
    last_name VARCHAR(100) NOT NULL,
    email VARCHAR(255) UNIQUE NOT NULL,
    phone_number VARCHAR(20)
);

CREATE TABLE specialties (
    specialty_id SERIAL PRIMARY KEY,
    name VARCHAR(100) UNIQUE NOT NULL
);

CREATE TABLE doctors (
    doctor_id SERIAL PRIMARY KEY,
    first_name VARCHAR(100) NOT NULL,
    last_name VARCHAR(100) NOT NULL,
    email VARCHAR(255) UNIQUE NOT NULL,
    phone_number VARCHAR(20)
);

CREATE TABLE doctor_specialties (
    doctor_id INT REFERENCES doctors(doctor_id),
    specialty_id INT REFERENCES specialties(specialty_id),
    PRIMARY KEY (doctor_id, specialty_id)
);

CREATE TABLE appointments (
    appointment_id SERIAL PRIMARY KEY,
    patient_id INT NOT NULL REFERENCES patients(patient_id),
    doctor_id INT NOT NULL REFERENCES doctors(doctor_id),
    appointment_time TIMESTAMP WITH TIME ZONE NOT NULL,
    status VARCHAR(50) DEFAULT 'scheduled' CHECK (status IN ('scheduled', 'completed', 'cancelled', 'rescheduled')),
    CONSTRAINT unique_doctor_time UNIQUE (doctor_id, appointment_time)
);

This SQL snippet illustrates the creation of tables for patients, specialties, doctors, a junction table doctor_specialties for many-to-many relationships, and appointments. Foreign keys ensure that an appointment cannot exist without a valid patient and doctor, while the unique_doctor_time constraint prevents a doctor from being double-booked at the same time.

The Power of a Solid Foundation

A well-defined schema, even at this initial stage, provides immense benefits. It ensures data consistency, simplifies complex queries, and acts as a clear contract for developers interacting with the database. This foundational work in the rdv_Medecin project is crucial for building a reliable and efficient appointment management system that can grow and adapt to future requirements.
